RollerDrive
从集成设备的高效率中获益

RollerDrive 是一款安全、紧凑的电动滚筒，适用于 ZPA（零压力积放）应用。ZPA 允许纸箱或包裹在没有接触的情况下积放，相比传统方法，能节省能源。

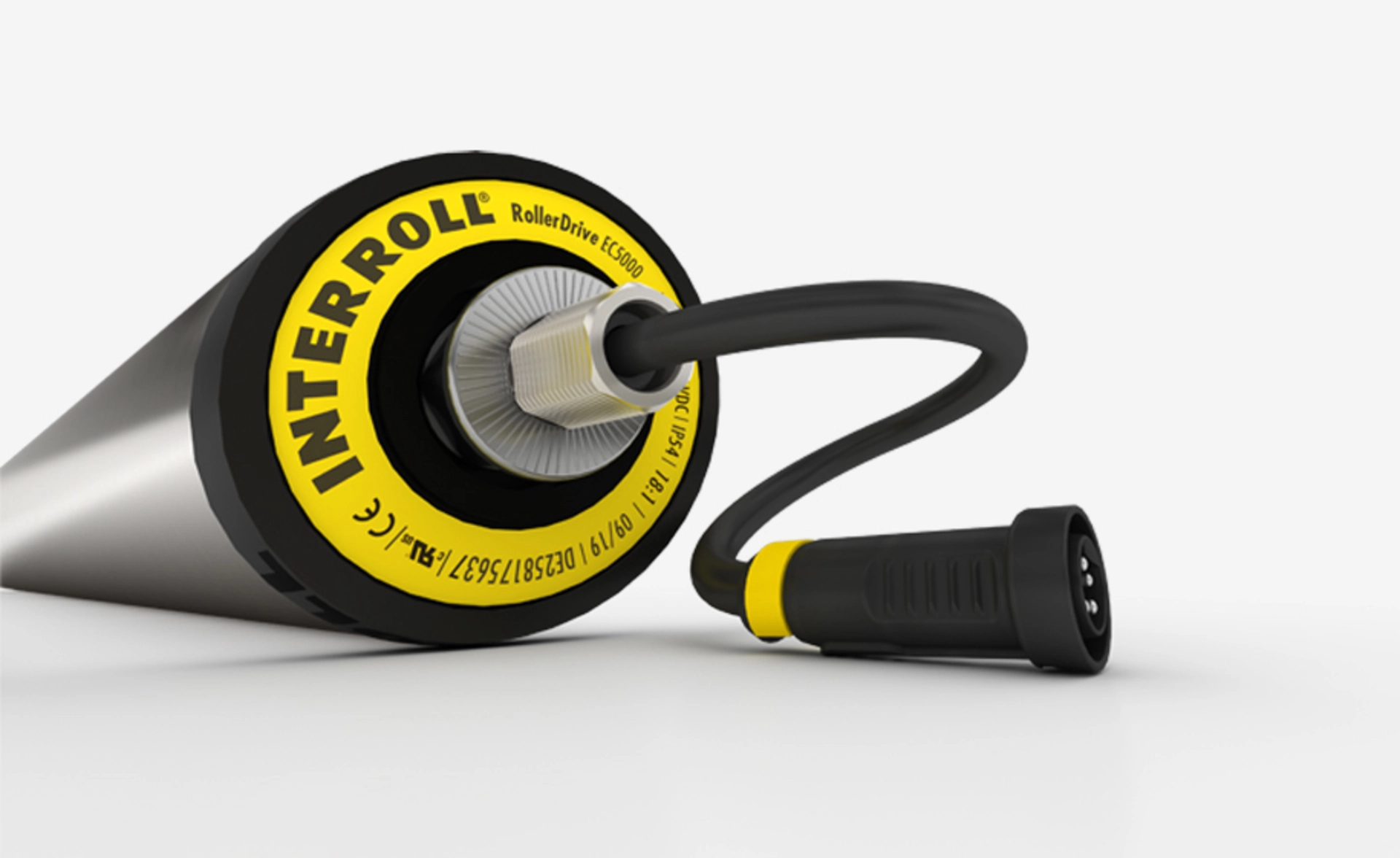

RollerDrive EC5000 作为功能滚筒直接集成到输送机中，处理最大 500 公斤的负载，适用于中等负载和家电。经过数百万次不同条件下的测试，确保了可靠性和耐用性。
提供 48V 或 24V 版本，带有模拟或总线接口，提供三种功率级别，以满足所有需求。

Filter 1 Filter 2 Filter 3 Filter 4 Filter 5

只需几步就能
找到合适的产品!

找到一个完全符合您需求的解决方案。

进入

载荷类型

单元负载 托盘

8 产品符合您的选择。
运行下一个筛选或进入这里查看产品。

输送机类型

辊道 带式输送机

8 产品符合您的选择。
运行下一个筛选或进入这里查看产品。

环境温度

冷冻食品 0至+40°C

8 产品符合您的选择。
运行下一个筛选或进入这里查看产品。

环境温度

8 产品符合您的选择。
运行下一个筛选或进入这里查看产品。

直线

直线段 曲线

8 产品符合您的选择。
运行下一个筛选或进入这里查看产品。

这 8 款产品完全满足您的要求

PLAY

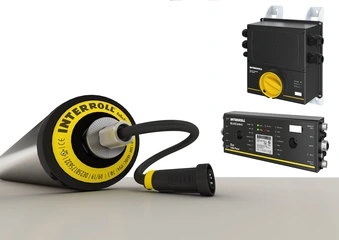

Interroll DC Platform

Interroll DC Platform 将 RollerDrive、电控和电源整合为一体化解决方案，帮助系统集成商和工程师精准满足客户的需求——从标准应用到具备工业4.0功能的系统。

下载目录

Interroll DC Platform：一款 RollerDrive，应用千变万化

PLAY
PLAY

RollerDrive 的优点

48V TECHNOLOGY

Economical solutions with 48 V

The DC platform’s new capabilities of producing effective zero-pressure-accumulation (ZPA) conveyor solutions are apparent from the electrical voltage alone: With its 48 V technology, Interroll is capitalizing on the technical evolution taking place in protective extra-low voltage solutions. 48 V systems facilitate the use of up to 50 percent fewer power units than 24 V systems; they allow for longer cable lengths and smaller wire cross sections and reduce the number of error sources, for instance as a result of voltage drops on the wires. This significantly reduces the investment required in the entire system and the risk of errors during commissioning.

BUS INTERFACE

Conveyor systems now offer data transparency for the first time. The EC5000 with the bus interface allows users to constantly obtain data on performance as well as information on the number of cycles or operating hours. This means users can precisely analyze how well and, above all, for how long our products are working. The EC5000 will remain available with the long-proven analog interface. However, the bus interface based on the CANOpen standard opens the door to the world of fully automated Industry 4.0 functionality.

WATCH VIDEO

POSITIONING

The bus interface of the new RollerDrive EC5000 can do much more than just transmit operating data. It enables completely new control functions, such as those needed in automation environments. This communication link not only enables users to more accurately control the acceleration, speed and braking of the materials being conveyed, but also to position the product on the conveyor with millimeter precision – essential for seamless integration with robots or automated gripper arms.

WATCH VIDEO

WIDE POWER RANGE

As the most extensive range of motor rollers on the market, this series has the ideal drive to suit the requirements of any conveyor system. 20 W variant: Cost-efficient conveyor solution for moving lightweight materials or empty trays. 35 W variant: Covers the majority of tray conveyor applications and is compatible with its well-established predecessor, the EC310. 50 W variant: The perfect choice for conveying heavy materials of up to 250 kg; also available with a diameter of 60 mm.

WATCH VIDEO
